Knotty
-
-
Important
- Allow for 10% cutting factor when using knotty siding profiles.
- All knotty trim is graded for the rough face and is not reversible.
*1 Coat Low Lustre Alkyd Oil must be top coated within 30 days.
Bevel Siding

Knotty Western Red Cedar Bevel Lap Siding, Kiln Dried
NOMINAL SIZE | ACTUAL SIZE | Surfacing | Recommended Exposure |
---|---|---|---|
11/16 x 6
|
11/16″ x 5-1/2″
|
Rough Sawn
|
300/lf per Square @ 4″ Exposure |
11/16 x 8
|
11/16″ x 7-1/4″
|
Rough Sawn
|
200/lf per Square @ 6″ Exposure |
11/16 x 10
|
11/16″ x 9-1/4″
|
Rough Sawn
|
150/lf per Square @ 8″ Exposure |

Knotty Haida Skirl, Wavy Edge Western Red Cedar, Bevel Siding
NOMINAL SIZE | ACTUAL SIZE | Surfacing | Recommended Exposure |
---|---|---|---|
15/16 x 10
|
15/16″ x 9-1/4″
|
Rough Sawn
|
150/lf per Square @ 8″ Exposure |
15/16 x 12
|
15/16″ x 11-1/4″
|
Rough Sawn
|
120/lf per Square @ 10″ Exposure |

ReadyPrime Western Red Cedar – Bevel Lap Siding, Kiln Dried, Rough Sawn Face Only
NOMINAL SIZE | ACTUAL SIZE | Surfacing | Recommended Exposure |
---|---|---|---|
11/6 x 8
|
11/16″ x 7-1/4″
|
Rough Sawn
|
200/lf per Square @ 6″ Exposure
|

Knotty Western Red Cedar – Dolly Varden, Kiln Dried
Knotty Cedar Boards

Western Red Cedar – Kiln Dried, Surfaced One Side Two Edges (S1S2E), Square Edge
NOMINAL SIZE | ACTUAL SIZE | Surfacing |
---|---|---|
1 x 4
|
13/16″ x 3-1/2″
|
S1S2E
|
1 x 6
|
13/16″ x 5-1/2″
|
S1S2E |
1 x 8
|
13/16″ x 7-1/4″
|
S1S2E |
1 x 10
|
13/16″ x 9-1/4″
|
S1S2E |
1 x 12
|
13/16″ x 11-1/4″
|
S1S2E |

Knotty Western Red Cedar Boards, Kiln Dried, Rough Sawn, Surfaced One Side Two Edges (S1S2E), Square Edge
NOMINAL SIZE | ACTUAL SIZE | Surfacing |
---|---|---|
5/4 x 4
|
1″ x 3-1/2″
|
S1S2E
|
5/4 x 6
|
1″ x 5-1/2″
|
S1S2E
|
5/4 x 8
|
1″ x 7-1/4″
|
S1S2E
|
5/4 x 10
|
1″ x 9-1/4″
|
S1S2E
|
5/4 x 12
|
1″ x 11-1/4″
|
S1S2E
|

Knotty Western Red Cedar Boards, #2 & Btr Appearance Grade, Rough Sawn, Green(GRN)
NOMINAL SIZE | ACTUAL SIZE | Surfacing |
---|---|---|
2 x 2 Available in 8′, 10′, & 12′ only.
|
1-3/4″ x 1-3/4″
|
Rough Sawn
|
2 x 4
|
1-3/4″ x 3-3/4″
|
Rough Sawn
|
2 x 6
|
1-3/4″ x 5-3/4″
|
Rough Sawn
|
2 x 8
|
1-3/4″ x 7-3/4″
|
Rough Sawn
|
2 x 10
|
1-3/4″ x 9-3/4″
|
Rough Sawn
|
2 x 12
|
1-3/4″ x 11-3/4″
|
Rough Sawn
|

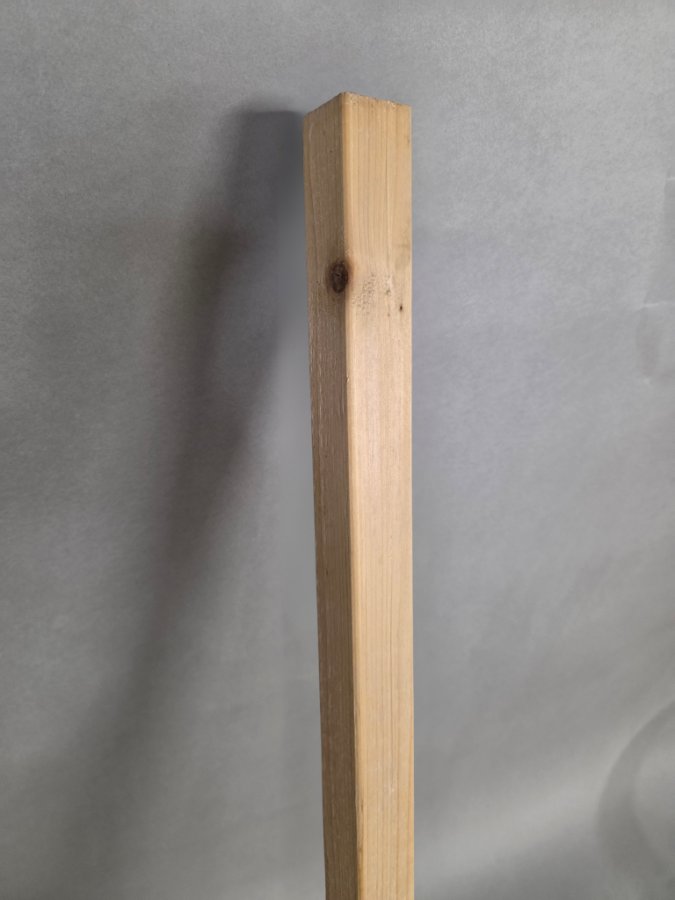

Knotty Western Red Cedar Boards, #2 & Btr Appearance Grade, Rough Sawn, Green(GRN)
NOMINAL SIZE | ACTUAL SIZE | Surfacing |
---|---|---|
2 x 10
|
1-3/4″ x 9-3/4″
|
Rough Sawn
|
2 x 12
|
1-3/4″ x 11-3/4″
|
Rough Sawn
|

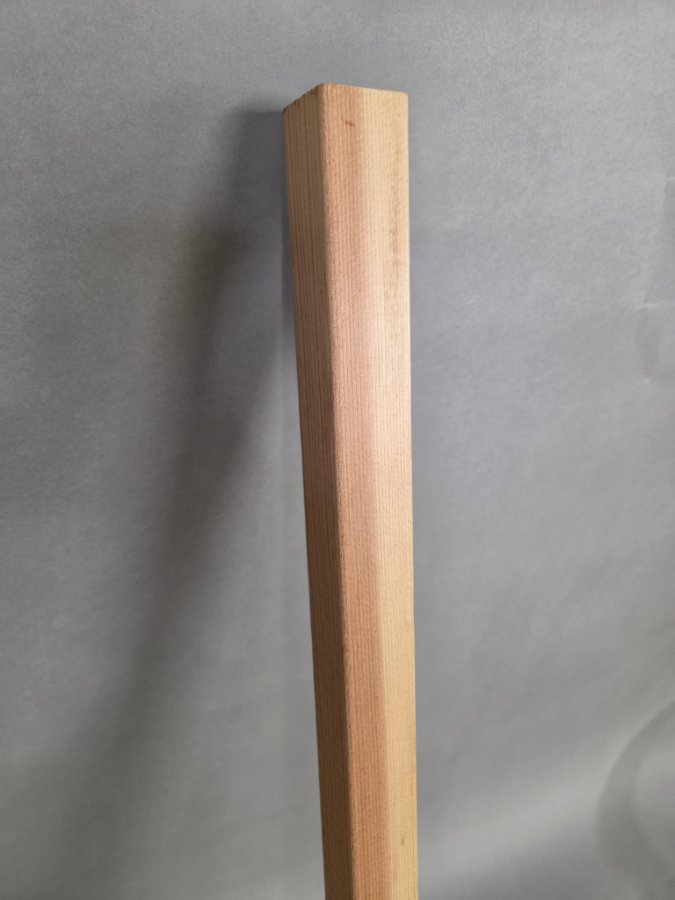

Western Red Cedar – Kiln Dried, Surfaced Four Sides (S4S), Eased Edge
NOMINAL SIZE | ACTUAL SIZE | Surfacing |
---|---|---|
2 x 2 Available in 8′, 10′, & 12′ only.
|
1-1/2″ x 1-1/2″
|
S4S
|
2 x 4
|
1-1/2″ x 3-1/2″
|
S4S
|
2 x 6
|
1-1/2″ x 5-1/2″
|
S4S
|
2 x 8
|
1-1/2″ x 7-1/4″
|
S4S
|
2 x 10
|
1-1/2″ x 9-1/4″
|
S4S
|
2 x 12
|
1-1/2″ x 11-1/4″
|
S4S
|

Knotty Western Red Cedar Decking, Radius Edge, Kiln Dried
NOMINAL SIZE | ACTUAL SIZE | |
---|---|---|
5/4 x 6
|
1″ x 5-1/2″
|
Finger Joint

NextGen Select Knotty Western Red Cedar, Finger Jointed, Kiln Dried, S1S2E
16′ or 20′ random length only.
NOMINAL SIZE | ACTUAL SIZE | Surfacing |
---|---|---|
1 x 4
|
11/16″ x 3-1/2″
|
S1S2E
|
1 x 6
|
11/16″ x 5-1/2″
|
S1S2E
|
1 x 8
|
11/16″ x 7-1/4″
|
S1S2E
|
1 x 10
|
11/16″ x 9-1/4″
|
S1S2E
|
1 x 12
|
11/16″ x 11-1/4″
|
S1S2E
|
5/4 x 4
|
1″ x 3-1/2″
|
S1S2E
|
5/4 x 6
|
1″ x 5-1/2″
|
S1S2E
|
5/4 x 8
|
1″ x 7-1/4″
|
S1S2E
|
5/4 x 10
|
1″ x 9-1/4″
|
S1S2E
|
5/4 x 12
|
1″ x 11-1/4″
|
S1S2E
|
2 x 4
|
1-1/2″ x 3-1/2″
|
S1S2E
|
2 x 6
|
1-1/2″ x 5-1/2″
|
S1S2E
|
2 x 8
|
1-1/2″ x 7-1/4″
|
S1S2E
|
2 x 10
|
1-1/2″ x 9-1/4″
|
S1S2E
|
2 x 12
|
1-1/2″ x 11-1/4″
|
S1S2E
|

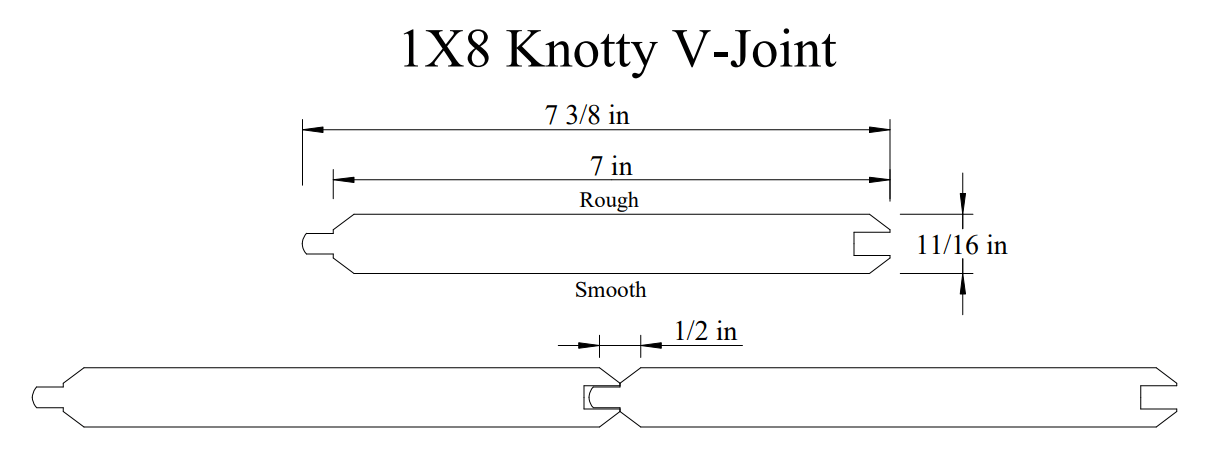

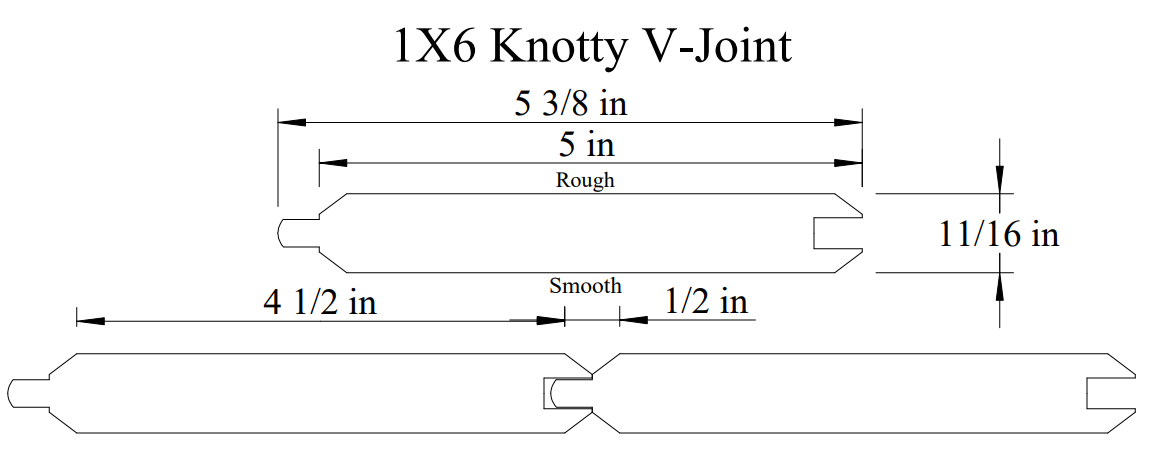

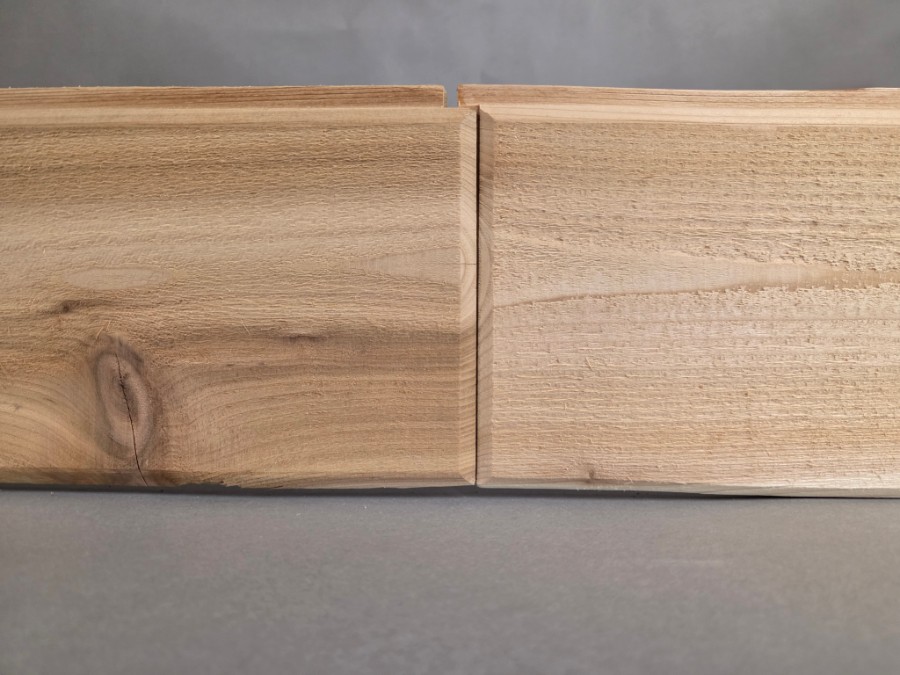

Paneling

- Knotty Western Red Cedar
- Kiln Dried
- Tongue & Groove
- V-Joint (WP-4+4)
- Reversible – Resawn Rough or Smooth Face
NOMINAL SIZE | ACTUAL SIZE | SURFACING | EXPOSURE | |
---|---|---|---|---|
1 x 4
|
11/16″ x 3-3/8″ |
Reversible – Resawn Rough / Smooth
|
400/lf per Square @ 3″ Exposure
|
|
![]() |
||||
1 x 6
|
11/16″ x 5-5/16″
|
Reversible – Resawn Rough / Smooth
|
240/lf per Square @ 5″ Exposure
|
|
![]() |
||||
1 x 8 | 11/16″ x 7-1/8″ |
Reversible – Resawn Rough / Smooth
|
178/lf per Square @ 6-3/4″ Exposure | |
![]() |
Profiles

Knotty Western Red Cedar, Kiln Dried, Log Cabin Siding
NOMINAL SIZE | ACTUAL SIZE | SURFACING | EXPOSURE |
---|---|---|---|
2 x 8 | 1-1/2″ x 7″ | Smooth |
185/lf per Square @ 6-1/2″ Exposure
|


Knotty Western Red Cedar, Kiln Dried, Ploughed & Beveled Hand Rail
NOMINAL SIZE | ACTUAL SIZE |
---|---|
2 x 4
|
1-3/8″ x 3-1/2″
|
2 x 6
|
1-3/8″ x 5-1/2″
|

Knotty Western Red Cedar, Tongue & Groove V-Joint Roof Decking, Kiln Dried, Center Matched Shingle Side V-Joint 2 Edges Exposed Face (CM V2E1S)
NOMINAL SIZE | ACTUAL SIZE |
---|---|
2 x 6
|
1-1/2″ x 5-1/4″
|

Knotty Western Red Cedar Channel, Rustic Siding, Kiln Dried, Rough Sawn
NOMINAL SIZE | ACTUAL SIZE | Surfacing | Exposure |
---|---|---|---|
1 x 8
|
13/16″ x 7-1/8″
|
Rough Sawn
|
189/lf per Square @ 6-3/8″ Exposure |
1 x 10
|
13/16″ x 9-1/8″
|
Rough Sawn
|
144/lf per Square @ 8-3/8″ Exposure |
PRODUCT | Tech Sheet |
---|---|
3.25″ Crown | |
4.25″ Crown
|
|
5.25″ Crown | |
7.25″ Crown |
PRODUCT | Tech Sheet |
---|---|
.75″ Quarter Round
|
|
.75″ Cove
|
|
2.25″ Crown Cove | |
2 x 4 Top Rail
|
|
2 x 6 Top Rail
|
|
Brick Mould
|
|
Drip Cap
|
|
Rake Mould
|
|
Stock Panel Moulding
|
