• Louisiana Pacific

Important

  • LP siding and trim offer outstanding impact resistance, performing better than vinyl and fiber cement in field tests.
  • All LP Smartside products are treated to the core through their proprietary SmartGuard process.  With four components of protection, the SmartGuard process adds strength and helps LP SmartSide products withstand impacts, freeze/thaw cycles, high humidity, and fungal decay.

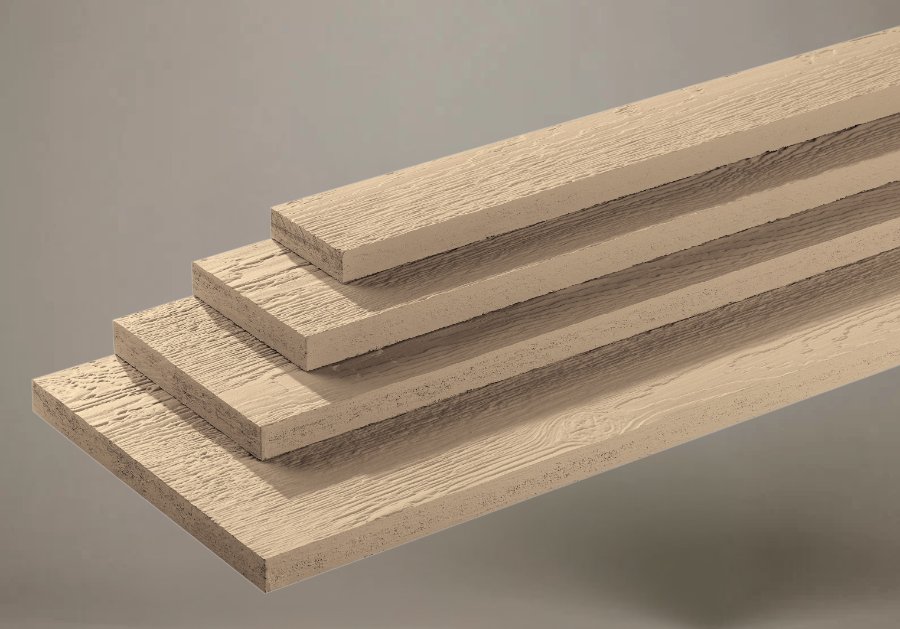

Louisiana Pacific Composite

Strand Woodgrain Trim
Available in a 16′ length.
Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
NOMINAL SIZE ACTUAL SIZE
1 x 2

5/8″ x 1-1/2″
1 x 3

5/8″ x 2-1/2″
1 x 4

5/8″ x 3-1/2″
1 x 6

5/8″ x 5-1/2″
1 x 8

5/8″ x 7-1/4″
1 x 10

5/8″ x 9-1/4″
1 x 12

5/8″ x 11-1/4″
5/4 x 2

1″ x 1-1/2″
5/4 x 3

1″ x 2-1/2″
5/4 x 4

1″ x 3-1/2″
5/4 x 6

1″ x 5-1/2″
5/4 x 8

1″ x 7-1/4″
5/4 x 10

1″ x 9-1/4″
5/4 x 12
 1″ x 11-1/4″

View Full Size Product Photo

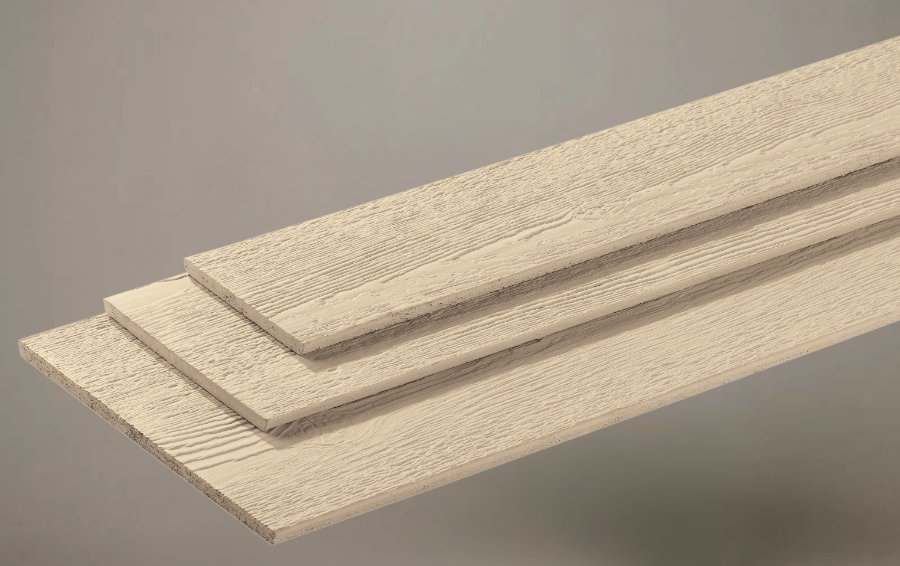

Strand Woodgrain Lap Siding
Available in a 16′ length.
Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
NOMINAL SIZE ACTUAL SIZE Recommended Exposure
3/8 x 6-16′

3/8″ x 5-7/8″

15.4 pcs per Square @ 4-7/8″ Exposure
3/8 x 8-16′

3/8″ x 7-7/8″

10.9 pcs per Square @ 6-7/8″ Exposure
3/8 x 12-16′

3/8″ x 11-7/8″

7 pcs per Square @ 10-7/8″ Exposure

View Full Size Product Photo

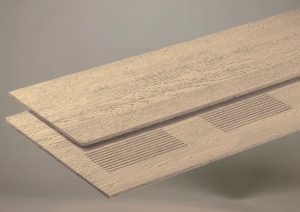

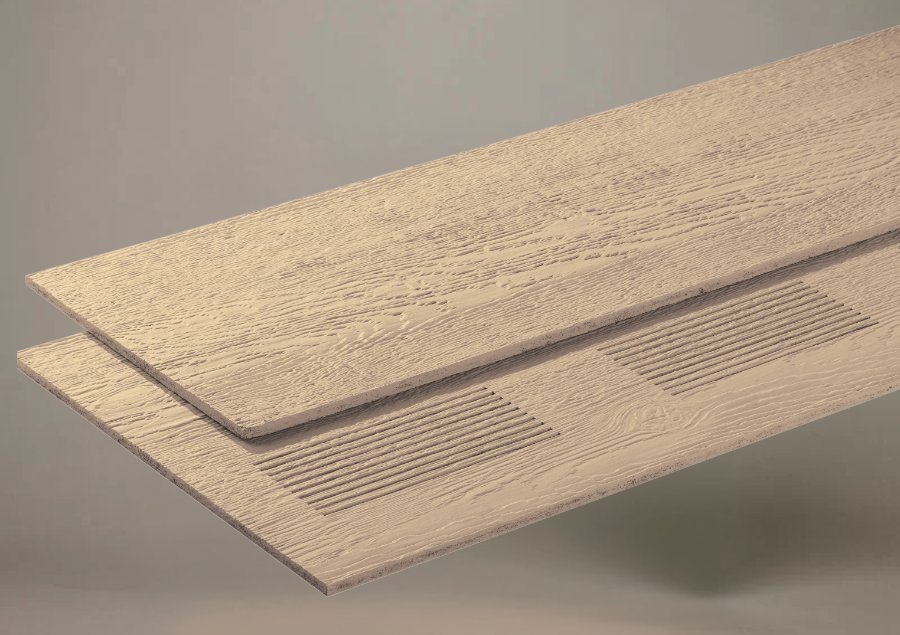

Woodgrain Vented Soffit
Available in a 16′ length.
Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic

Square Edge

NOMINAL SIZE ACTUAL SIZE
3/8″ x 12-16′
3/8″ x 11-15/16″
3/8″ x 16-16′
3/8″ x 15-15/16″
3/8″ x 24-16′
3/8″ x 23-15/16″

View Full Size Product Photo
Woodgrain Batten Strips
Available in a 16′ length.
Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
NOMINAL SIZE ACTUAL SIZE
1 x 3-16′

17/32″ x 2-1/2″
View Full Size Product Photo
Woodgrain Panel T1-11, 8″ on Center

8″ on Center, Shiplap Edge

Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
NOMINAL SIZE THICKNESS
4 x 8
 7/16″
4 x 9
 7/16″
4 x 10
 7/16″

View Full Size Product Photo
Woodgrain Panel T1-11, 4″ on Center

4″ on Center, Shiplap Edge

Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
NOMINAL SIZE THICKNESS
4 x 8
 7/16″
4 x 9
 7/16″
4 x 10
 7/16″

View Full Size Product Photo
Woodgrain Soffit Panel

Square Edge

Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
NOMINAL SIZE THICKNESS
4 x 8
 3/8″

View Full Size Product Photo
Woodgrain Shiplap No-Groove Sidewall Panel

Shiplap Edge

Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
NOMINAL SIZE THICKNESS
4 x 8
 3/8″
4 x 9
 3/8″
4 x 10
 3/8″

View Full Size Product Photo
Woodgrain Strand Shake Panel, Straight or Staggered
Coating Options: Edmund Allen Semi-Naturals Two™ Tone Colors, Solid Color Latex Acrylic
ACTUAL SIZE Recommended EXPOSURE
3/8″ x 11-5/8’ x 48” 30 pcs per Square @ 10″ Exposure
View Full Size Product Photo

Edmund Allen Exclusive Profiles

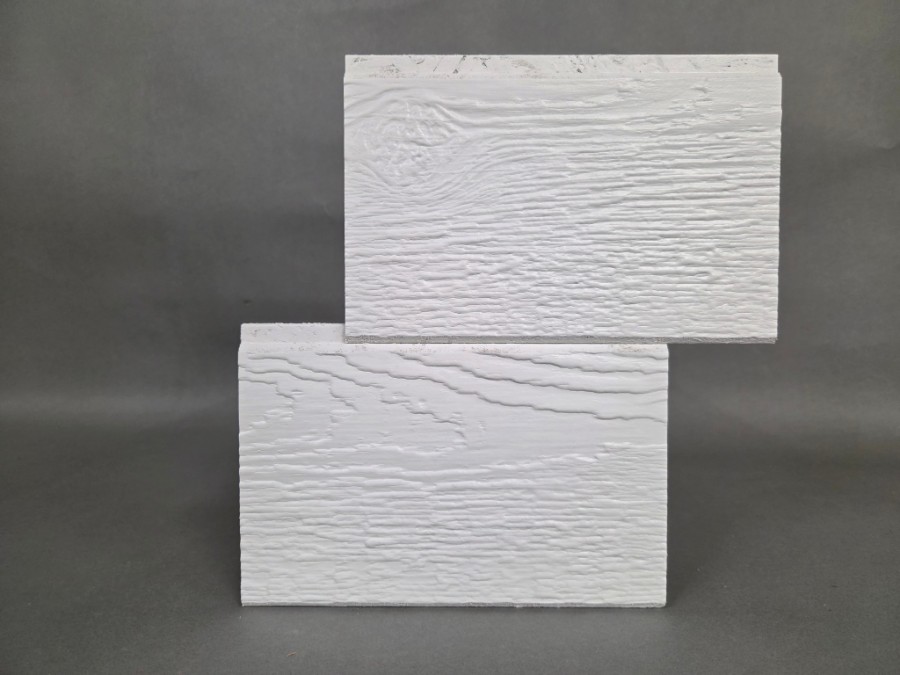

Woodgrain, 1×6 Tongue & Groove, V-Joint
Available in a 16′ length.

May only be used as Soffit, Porch Ceiling, or Interior Paneling

Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
NOMINAL SIZE ACTUAL SIZE EXPOSURE
1 x 6
9/16″ x 5-3/8″
 5″
View Full Size Product Photo
EA LP Full Keyway – Round Panel 6-1/2” Exposure
Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
ACTUAL SIZE RECOMMENDED EXPOSURE
3/8″ x 15-1/4″ x 47-25/32″

46 – 1/4pcs per Square @ 6-1/2″ Exposure
View Full Size Product Photo
EA LP Half Keyway – Fishscale Panel 7” Exposure
Coating Options: Edmund Allen Semi-Naturals™ Two Tone Colors, Solid Color Latex Acrylic
ACTUAL SIZE RECOMMENDED EXPOSURE
3/8″ x 8″ x 48-17/32″
 43 pcs per Square @ 7″ Exposure
View Full Size Product Photo
